Products Description

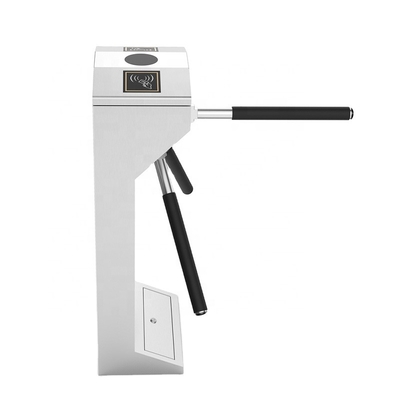

Tripod turnstile, also known as three-roller gate, is a kind of channel gate, which is an intelligent control terminal device for the entry and exit of the pedestrian passage. It is specially used for gates that require security check or control for personnel exits and entries, such as dining halls, hotels, office buildings, museums, stadiums, clubs, subways, stations, wharfs, tourist attractions and other places.

Highlights:

1, Full stainless steel structure, Strong and durable, good stability, Suitable for harsh outdoor environments, such as construction sites 2, Tripod arms, one passage one arm, it can effectively stop trailing and fare evasion behaviors 3, The arm will drop automatically when there is fire alarm or power off. 4, Unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration.

Moduel No.	LD-T303
Size	965х482х283 mm.
Gate length	510mm; maximum channel width: 600mm
Box thickness	1.26mm
Material	International 304 stainless steel,
Drive voltage	DC 24V
Access direction	one-way traffic / two-way traffic
Opening mode	ID/IC card reader and other read head verification opening, button opening, etc.

Function introduction:

(1) Rotary lever function: When the pedestrian swipe card is valid, the pedestrian passes. After gently pushing the brake lever, the brake lever will automatically rotate following the passage of the person, and the speed will be automatically adjusted according to the speed of the pedestrian.

(2) Homing function: After the passage process is over, the brake lever automatically returns to the initial blocking position.

(3) Falling rod function: The brake rod that acts as a barrier when the power is off automatically falls, which is convenient for evacuating people and meets the requirements of fire protection.

(4) Upper lever function: After the power is turned off, the brake lever is lifted up twice after the rotary disk has made one turn, and the brake lever is reset and lifted.

(5) Anti-illegal break-in function: When the card is invalid, no card is swiped or traffic is prohibited, the forced push rod will be regarded as illegal break-in, the system will automatically alarm and lock the brake lever (making it impossible to be pushed).

(6) Anti-collision function: When the brake lever is locked, it cannot be pushed by external force, and it can withstand the impact force in a safe range.

7) Passing instruction function: Install an LED indicating board at a conspicuous placeon the housing frame to remind pedestrians the passing state and direction of the gate.

Customize extended functions:

1. Counting and alarm functions;
2. Case material is 304 #, other materials can also be customized
3. Remote control switch
4. Dynamic integrated face recognition
5. Emergency escape function can be added to open the gate by remote button in
case of special emergency
6. Box thickness standard 1.5mm
7. Fingerprint recognition of time attendance
8. QR code pass
